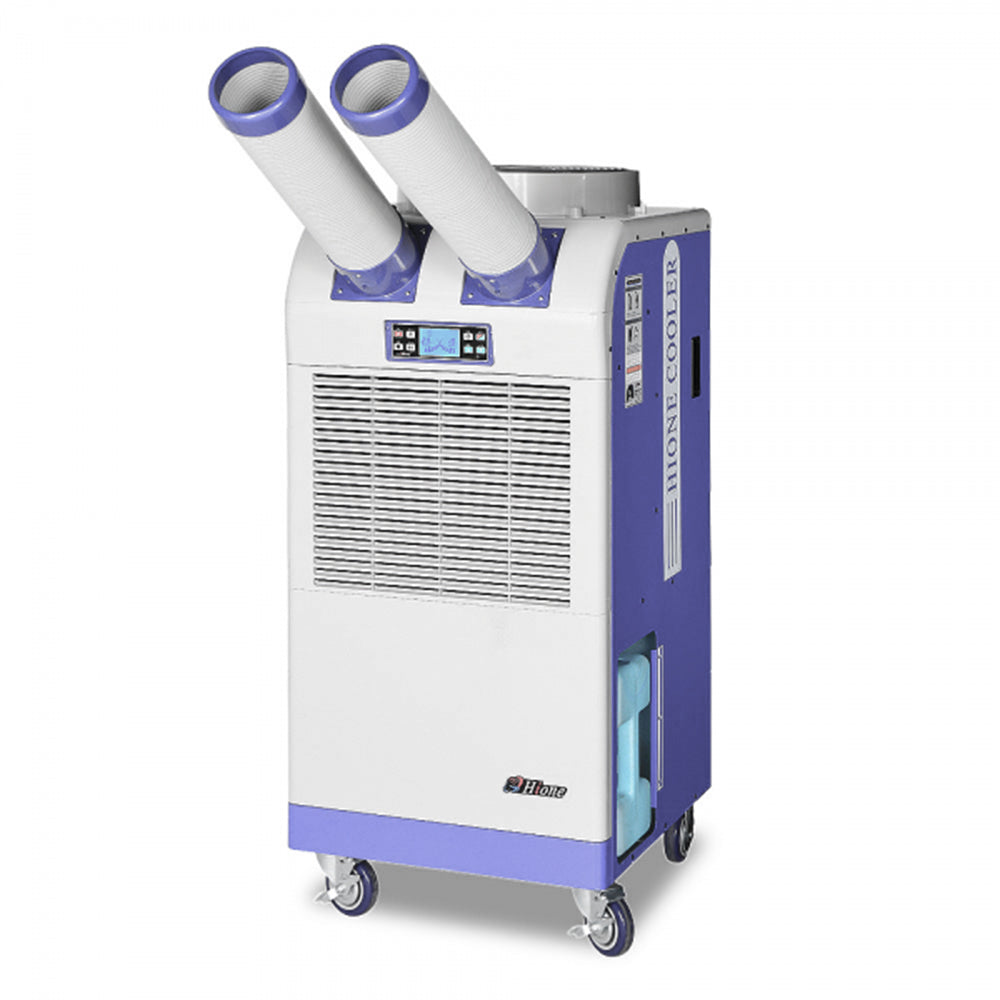

Portable Heat Pump by HIPERS: Enjoy Comfortable Environments Year-Round

Introducing the portable heat pump by HIPERS, designed to maintain comfortable indoor environments throughout the year. With the ability to efficiently move heat energy, this heat pump offers both cooling and heating functionalities, ensuring optimal comfort in any setting.

Heat pump main principles:

  • Heat Transfer Principle:
    Heat pumps regulate indoor and outdoor temperatures using the principle of heat transfer, which states that heat always moves from higher to lower temperatures.
  • Refrigeration Cycle:
    Heat pumps employ the refrigeration cycle to transfer heat from one location to another. The refrigeration cycle consists of a compressor, evaporator, condenser, and expansion valve.
  • Compression:
    In the compression stage, heat pumps compress refrigerant to transform it into a high-pressure gas. However, in the case of heat pumps, this high-pressure gas is utilized to transfer heat absorbed from the outdoor environment indoors.
  • High Pressure Gas:
    The high-pressure gas state of the refrigerant in heat pumps absorbs heat from the outdoor environment and transforms into a high-pressure liquid. This absorbed heat is then transferred indoors to provide heating.
  • Liquid:
    In the liquid state, the high-pressure liquid refrigerant expands through an expansion valve, lowering its pressure and temperature. This process allows the refrigerant to release the absorbed heat from the outdoor environment through the evaporator.

Key Features and Benefits:

  • Flexible Operation: Whether you need cool air in the summer or warm air in the winter, our heat pump delivers both with ease.
  • Convenient Switching: Transitioning between cooling and heating modes is simple and hassle-free, giving you control at your fingertips.
  • Efficient Energy Usage: Utilizing cutting-edge technology, our heat pump maximizes energy efficiency while minimizing power consumption.

DSCH - 130

Cooling: 13,600Btu/h
Heating: 13,000Btu/h
Cover Area: 33㎡
Power Consumption: 1,700W
Duct: 5"(Ø125) x 2
Dimension: 480x600x1130mm
Weight: 65kg
Refrigerant: R-410A
Power Supply: 1Ph, 115V, 60Hz

DSCH - 210

Cooling: 21,800Btu/h
Heating: 21,000Btu/h
Cover Area: 50㎡
Power Consumption: 2,300W
Duct: 5"(Ø125) x 3
Dimension: 560x700x1250mm
Weight: 80kg
Refrigerant: R-410A
Power Supply: 1Ph, 115V, 60Hz
